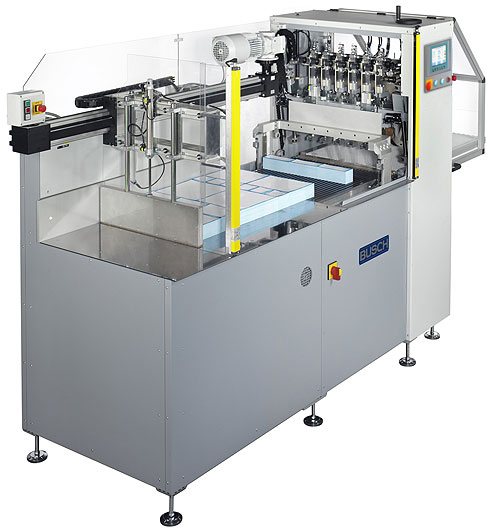

Multiple Banding Machines MB 54 / 74 / 104
For the automatic banding of higher volumes of square-cut labels or similar products, either in-line or off-line
The space-saving Multiple Bander is used for banding rows of paper piles, such as labels, square-cut on a guillotine.
Installation either as a stand-alone machine (e.g. with an air pallet lift) or linked to all known guillotines.
An increased output of the cutting plant is achieved by more effective work flow.
Also applicable for mixed sheets (patented machine system).
With 4-6 banding stations as standard and up to 12 stations as an option, with central adjustment. Banding material is either polyethylene tape or kraft paper tape.
Standard equipment with integrated feed pusher, safety light barrier and touch screen control panel. The machine height is adjustable to achieve a variable height for the working plate. The slope of the roller delivery is also adjustable. All models are available either for delivery to the right or to the left side.
To make use of the high output especially of MB 74 and MB 104, it is advisable to place a combination of two guillotines in front of the multiple bander - to increase the output of the banded products.
| Multiple Bander | MB 54 | MB 74 | MB 104 | ||
|---|---|---|---|---|---|
| Max. feeding size | L x W | mm | 540 x 1040 | 740 x 1040 | 1040 x 1040 |
| Max. banding size | L x W | mm | 540 x 250 | 740 x 250 | 1040 x 250 |
| Min. banding size | L x W | mm | 43 x 25 | 43 x 25 | 43 x 25 |
| Max. pile height | H | mm | 125 | 125 | 125 |
| Min. pile height | H | mm | 30 | 30 | 30 |
| Number of banding stations - optional up to 12 stations |
4 | 4 | 6 | ||
| Machine output | strokes/min. | 8 | 8 | 8 | |
| Banding material | polyethylene foil 80µm, coated kraft paper 70/30g/m² | ||||
| Width | mm | 25 (optional 20, 30 or 40) | |||
| Machine weight, net | kg | 730 | 810 | 930 | |
Information folder for Multiple Banding Machines (PDF 349 kB)

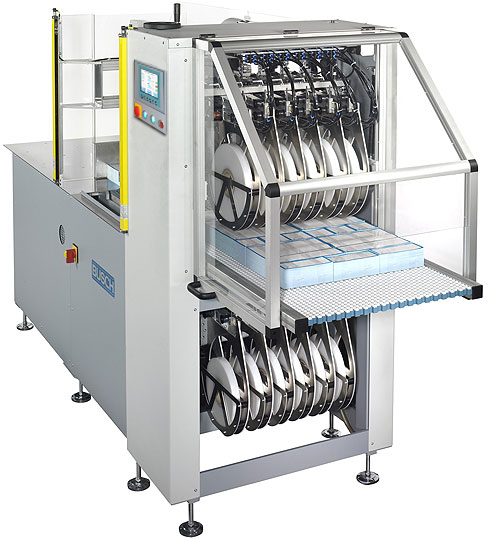

Models for delivery to the left or right
MB74 L (Delivery to the left side)
MB54 R (Delivery to the right side)

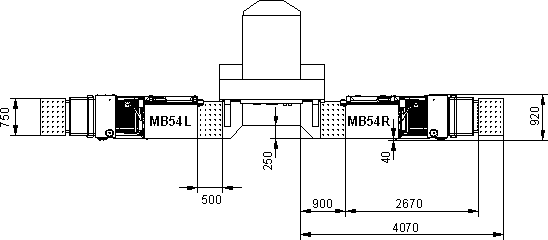

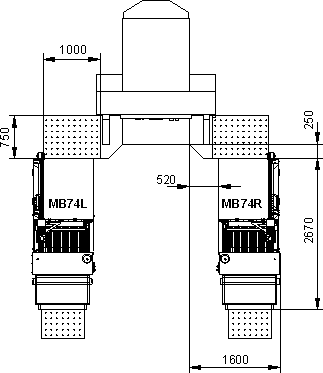

Examples of installation with delivery to the left or right
Banding material
- Suitable banding material for our BUSCH Multiple Banding Machines in top quality and different versions available ex stock.
- More information can be found here.
