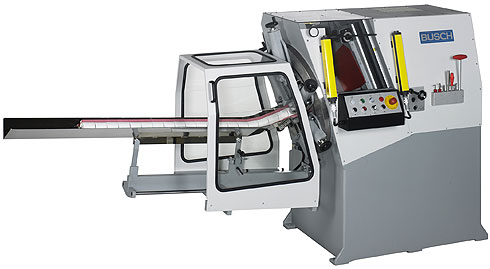

Die-Cutting Machines BL / BLS

The powerful die-cutters for larger formats and high productivity - equipped with light barriers releasing the cutting stroke

Standard equipment includes 5 (for BL) or 6 (for BLS) adjustable clamping arms and waste slitters with holders.

Once the material (square-cut sheets) is inserted the cutting stroke is released when the safety light barrier is activated.

by safety light barrier

by safety light barrier

Model BL has a maximum die-cut size of 220 x 260 mm – or a diameter of 250 mm for circular products.
Model BLS has a larger die-cut size of 230 x 320 mm - or a diameter of 260 mm for circular products.
These robust and powerful machines are used for die-cutting all types of material and where higher volumes are required also. The machines are used for cutting contours of large-sized labels, brochures, children's booklets, credit and loyalty cards.
The models are also suited for die-cutting labels in a two-up system, e.g. detergent labels and similar.For this procedure labels are interlocked in pairs to save material and guillotining time.
The machines are commonly used for counter-pressure cutting when handling special material, e.g. inmould labels.

Model		BL	BLS
Max. die-cut size	mm	220 x 260	230 x 320
Min. die-cut size	mm	15 x 15	20 x 20
Max. stack height (height of cutting die 60 mm)	mm	190	190
Die-cutting pressure	kg	5.700	5.700
Die-cutting strokes max.	p/min	18	16
Max. machine output (feeding 1.000 sheets, label paper 80 gsm)	sheets/h	1.080.000	960.000
Weight	kg	1.350	1.450

Cutting dies for individual shapes
are supplied by die makers.
See details in our brochure
Die-Cutting Machines.
