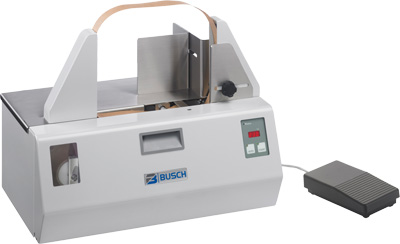

Table Banding Machine TB 26
Maximum output from minimum area
The Busch table banding machine handles difficult work with ease.
Suited to different production requirements because of its mobility.
All types of products are banded with coated kraft paper tape (white or brown) or with transparent polypropylene foil tape.
Two sizes are available:
- for 20 and 30 mm tape width
- for 40 and 50 mm tape width
with an easy adjustment of the tape width.
The banding machines are equipped with adjustable position stops, digital display, error message and electronic temperature control.
Machines can be operated by:
- single stroke release by press-button
- single stroke release by foot pedal
- automatic sensor release

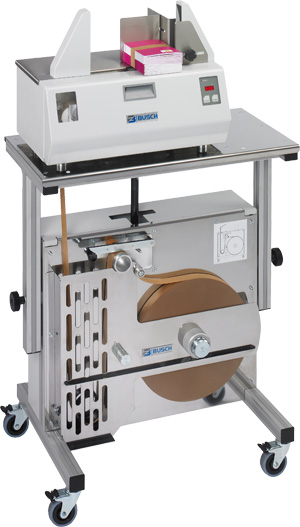

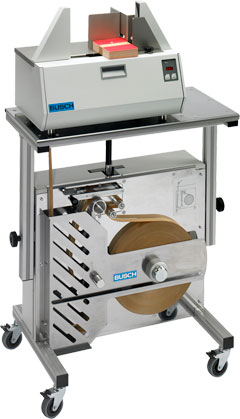

For high volume production a movable large reel stand is offered for reels with 800 m kraft paper tape or 1200 m foil tape. The stand height is easily adjustabe by means of a gas pressure spring. The band feeding is controlled by sensor detection.
| Table Banding Machine | TB 26 I | TB 26 II |
|---|---|---|
| Banding material | coated kraft paper, polypropylene foil (PP) 80/100 µm |
coated kraft paper, polypropylene foil (PP) 80/100 µm |
| Tape widths | 20 and 30 mm | 40 and 50 mm |
| Reel length - kraft paper / PP 80 / 100 µm | 150 / 200 / 150 m | 150 / 200 / 150 m |
| Machine output strokes/min | 25 - 30 | 25 - 30 |
| Max. measurements of products to be banded : - Length - Width with kraft paper - Width with foil (PP 100 µm) - Width with foil (PP 80 µm) - Height |
no limit 260 mm 220 mm 180 mm 170 mm |
no limit 260 mm 220 mm 180 mm 170 mm |
| Machine measurements (length x width x height) | 506 x 323 x 390 mm | 506 x 323 x 390 mm |
| Weight | 25 kg | 25 kg |
| Large reel stand for TB 26 I and TB 26 II | |
|---|---|
| Max reel diameter | 400 mm |
| Inside diameter of reel core | 50 mm |
| Reel length - kraft paper | 800 m |
| Reel length - PP 80 / 100 µm | 1200 / 950 m |
| Tape widths | 20, 30, 40, 50 mm |
| Measurements: (length x width x height) | 788 x 567 x 663-932 mm |
| Weight | 39 kg |
Brochure Table Banding Machines TB 26 and TB 39 (PDF 846 kB)
Banding material
- Suitable banding material for our BUSCH Banding Machines in top quality and different versions available ex stock.
- More information can be found here.
